ClayTech’s DiverTron CMS C7A1 Submersible Rainwater Management System is suitable for pumping water from your tank to the whole house including domestic toilets, washing machine and external garden taps. The ClayTech Management System (CMS) provides the convenience of automatic selection between your water tank and mains supply, with the emphasis on maximising the use of your rainwater.

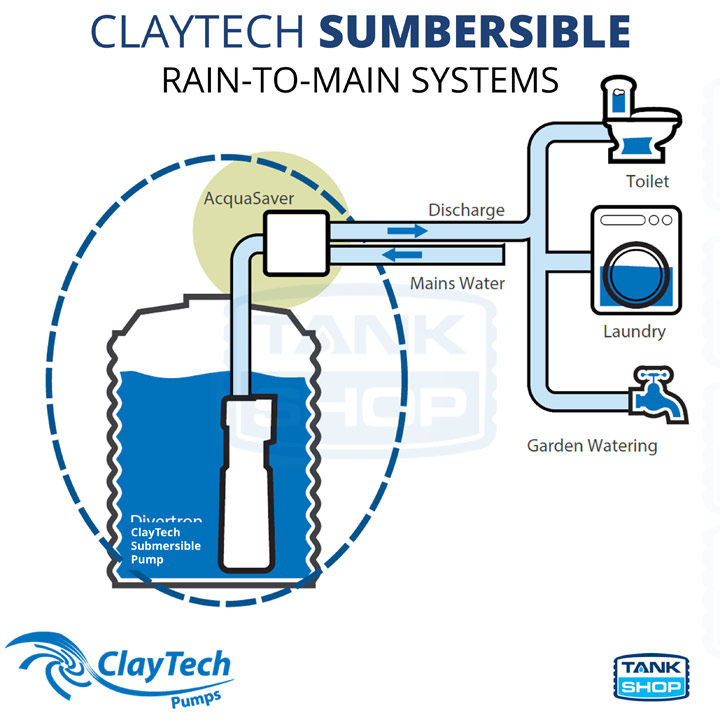

Claytech Management System
ClayTech Management Systems (CMS) provide the convenience of automatic selection between your water tank and mains supply, with the emphasis on maximizing the use of your rainwater.
When tank water is available the CMS will draw water from this source using the pump to deliver your water requirements. During power outages or in the case your tank supply is depleted the CMS automatically transfers to mains water supply. CMS will automatically select to supply from your water tank as soon as rainwater is available again.

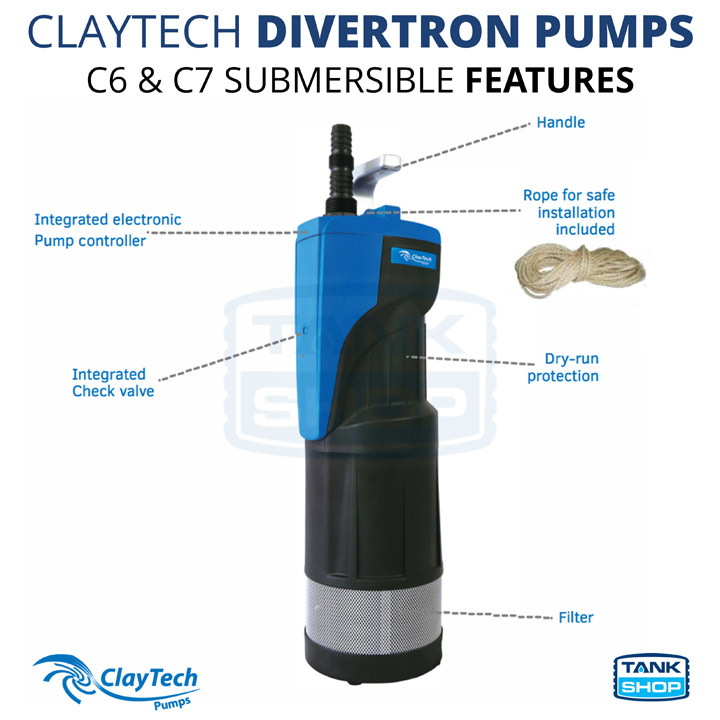

About ClayTech DiverTron In-Tank Submersible Pumps
The ClayTech DiverTron can be installed inside above or below ground rain water tanks and will automatically start and stop when water is needed.
The revolutionary design includes an electronic pressure controller inside this automatic, multistage, pressure boosting submersible pump.
Loss of prime protection will turn the pump off when the rainwater tank is empty and will restart the pump every 24 hours until it is re-primed and ready to resume operation.
Features
- Auto on/off – Operates automatically when there is water demand and switches off when the flow ceases
- Inbuilt pressure controller
- Suitable for potable water
- 15m power flex
- Inbuilt dry run protection
- 2.2 Bar Cut-in pressure
Applications
- In tank rainwater
- House pressure
- Garden watering
A 3, 8 or 18 litre pressure tank is recommended for reduced pump starts, energy savings and longer pump life.
AcquaSaver Diversion Valve – 1 Inch
The AcquaSaver® Valve is a fully automatic mechanical rainwater/mains water changeover device designed for pressure pump supply systems for harvesting rainwater for the toilet, laundry and household applications with automatic mains backup. It is suitable for up to 2 toilets and a washing machine and an extra tap outlet.
- Easy to install
- Patent design
- Watermark approved
- Does not require regular maintenance
- No electrical consumption
- Fully weatherproof – Built to last
- Can be mounted in any position
- Dual Outlets
- Built-in dual check valve for backflow prevention
- 3 Year warranty
