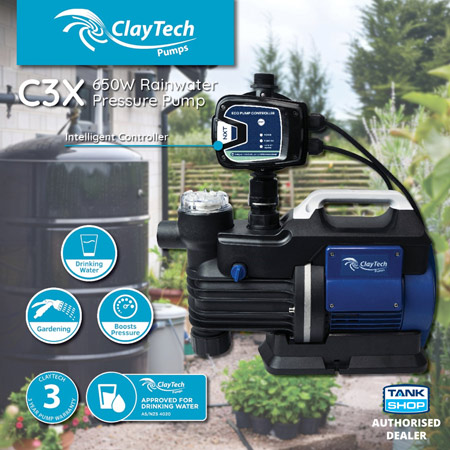

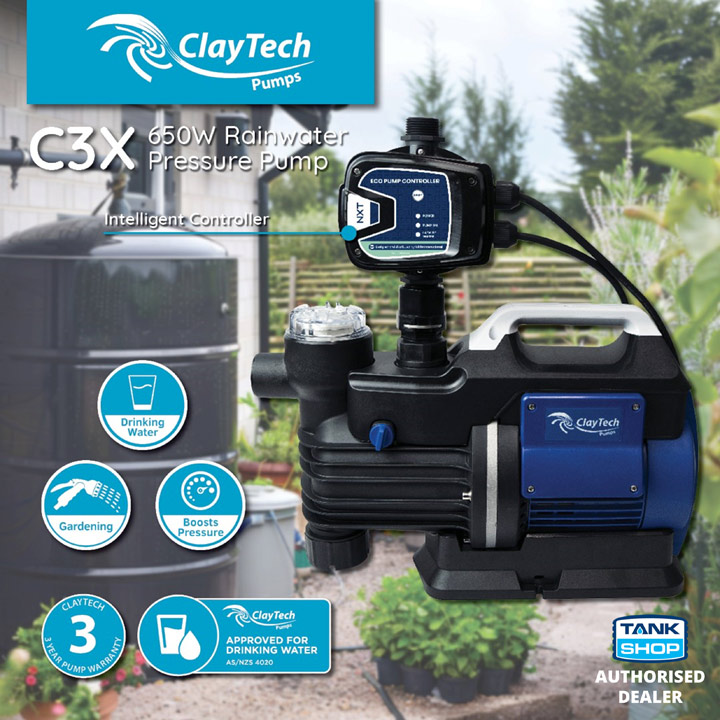

The ClayTech C3X Rainwater Pressure Pump is a versatile self-priming centrifugal jet pump designed for residential water supply and pressure boosting. Part of the ClayTech CX Series of Rainwater Pumps.
Capabilities:
- Supports up to 3 simultaneous water outlets
- Pumps water up to 35m vertically
- Suitable for single and double-story homes
Applications
Suitable for:
- Household water supply
- Laundry washing machine
- Toilet flushing
- Garden irrigation
- Outdoor cleaning
- Kitchen and bathroom taps
Key Features
- Intelligent pressure controller – automatic on/off (1.5 bar start pressure)
- Dry-run protection
- Integrated inlet strainer to filter debris
- Built-in non-return valve
Technical Specifications
Brand | ClayTech |
---|---|
Model | CLA-C3X |
Location | External |
Tap Outlets | 2 – 4 |

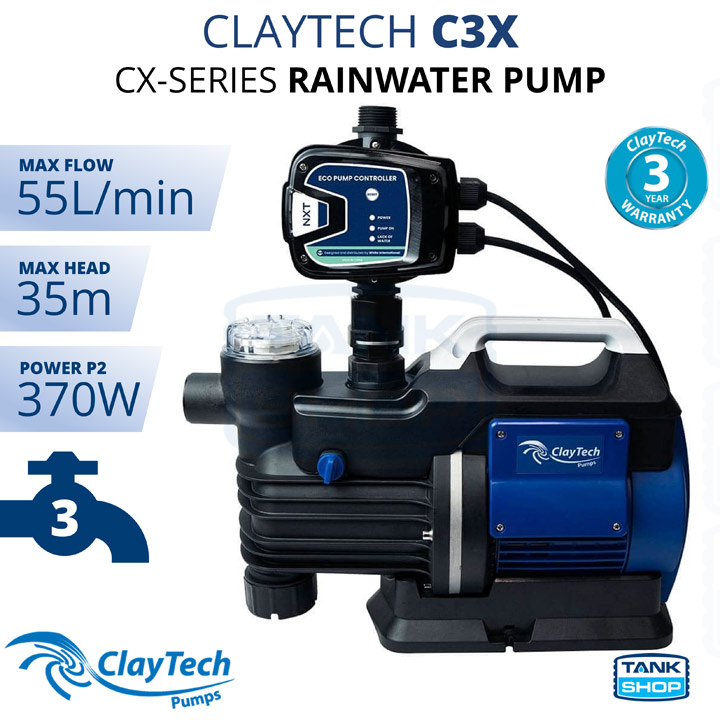

Maximum Flow | 55 L/min |
Maximum Head | 35 metres |
Pressure Controller | Yes |
Rain-to-Mains Switching | No |
Dry Run Protection | Yes |
Inlet | 25mm Female BSP |
Outlet | 25mm Female BSP |
Watts (Input) | 650 |
Watts (Nominal) | 375 |
Cable Length | 1.5 metres |
Size (mm) | 175W x 455L x 465H |
Warranty | 3 years |
Installation Guide
For full details on how to install this pump, please refer to the ClayTech CX-Series (C3X / C5X) User Manual (PDF 2.5 MB)
Warranty
ClayTech C3X comes with a 3-year warranty for domestic use. For warranty conditions, refer to ClayTech CX-Series (C3X / C5X) User Manual (PDF 2.5 MB)
Need More Information?
- ClayTech C3X Product Data Sheet (PDF 538 KB)
- ClayTech CX-Series (C3X / C5X) User Manual (PDF 2.5 MB)
